Black Lift Top Coffee Table Hardware - DIY Hydraulic Hinge Mechanism for Living Room Furniture

Specifications: Overall length and Width and height when in folded position: 27 3/8 inch ( L) x 13 1/2 inch (W） x 3 7/8 inch (H). The top raises up 9 inch and forward 8 1/4 inch. Screws are Not included (you can use our mounting Screws or you can use your own screws or bolts or any other screws that may help you to finish your particular project, just measure the holes and estimate the length of the screws before you order your own screws).No instruction is included. Package includes 2 hinges and 2 buit-in Gas Pistons - enough to do one coffee table (or whatever you want to use it for).No instruction included. The specs say it will hold between 100 and 200 lbs when opening.Note : Each Gas Hydraulic Lift has 6KG of force.

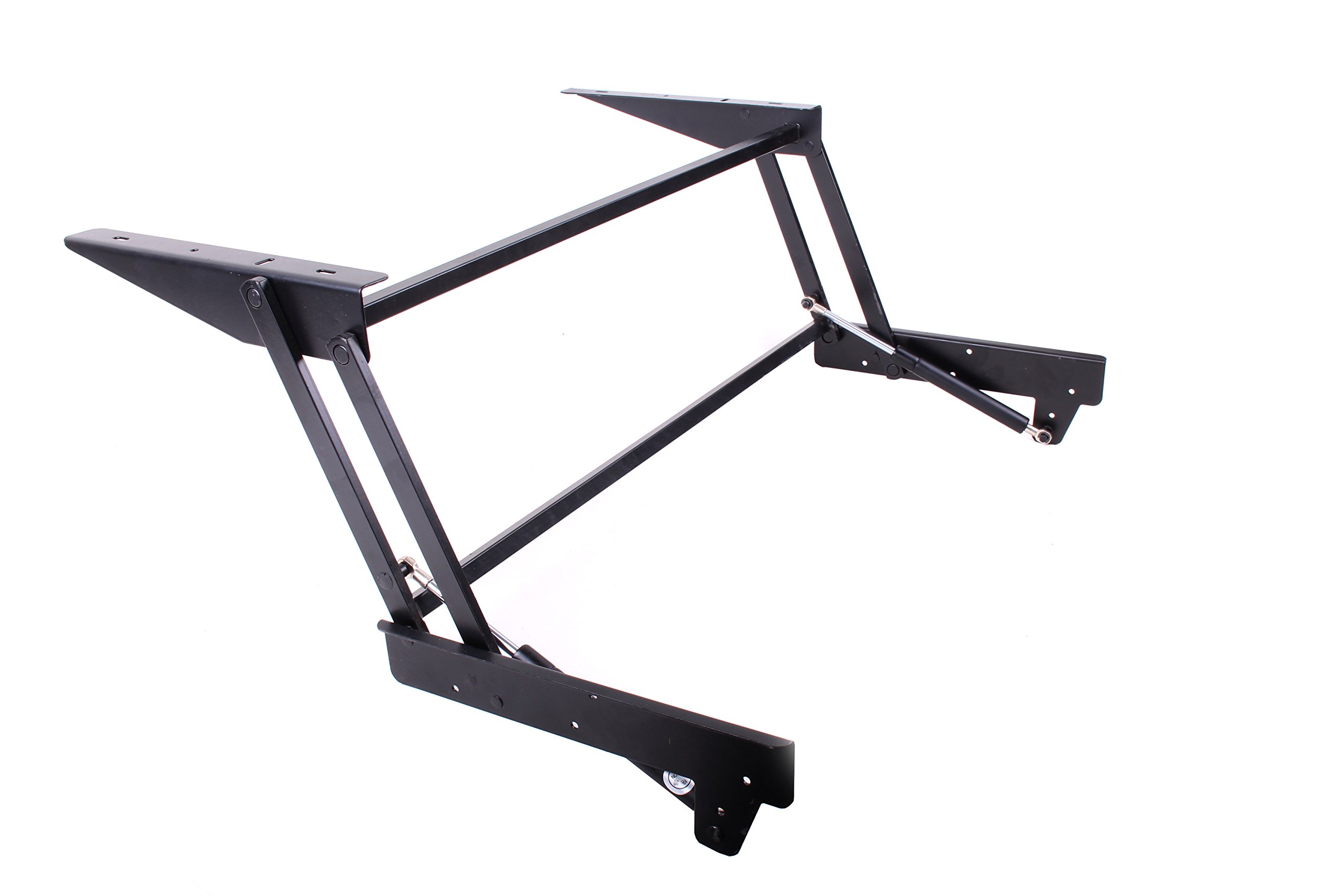

This the listing is for hardware only,No Instruction is included, please check if it is exactly the one you need before your purchase.Lift Up Coffee Table Mechanism Hardware Fitting Furniture Hinge with Gas Hydraulic. Turn a normal coffee table into a tricked-out coffee table. Made by heavy duty metal(won't bend).

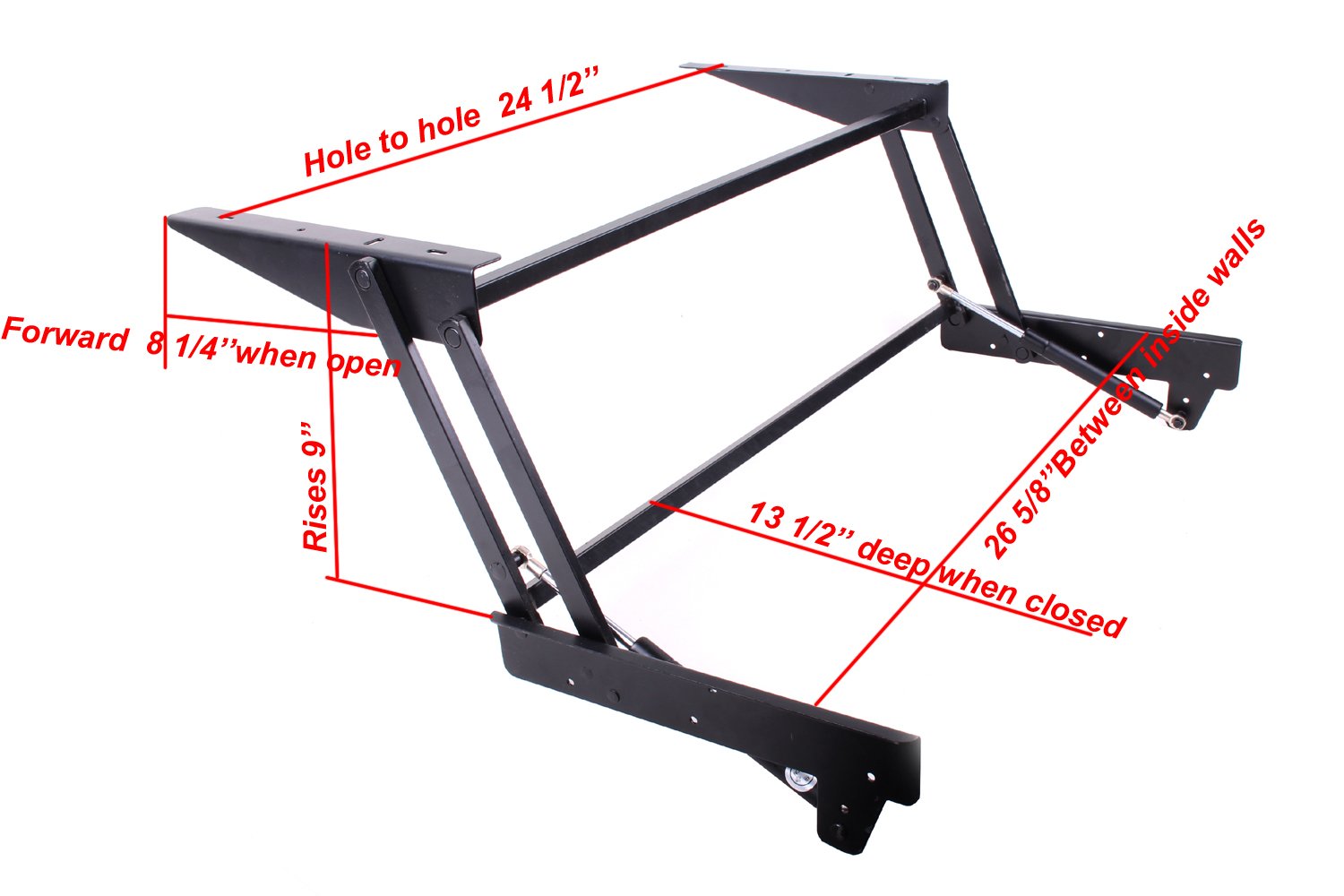

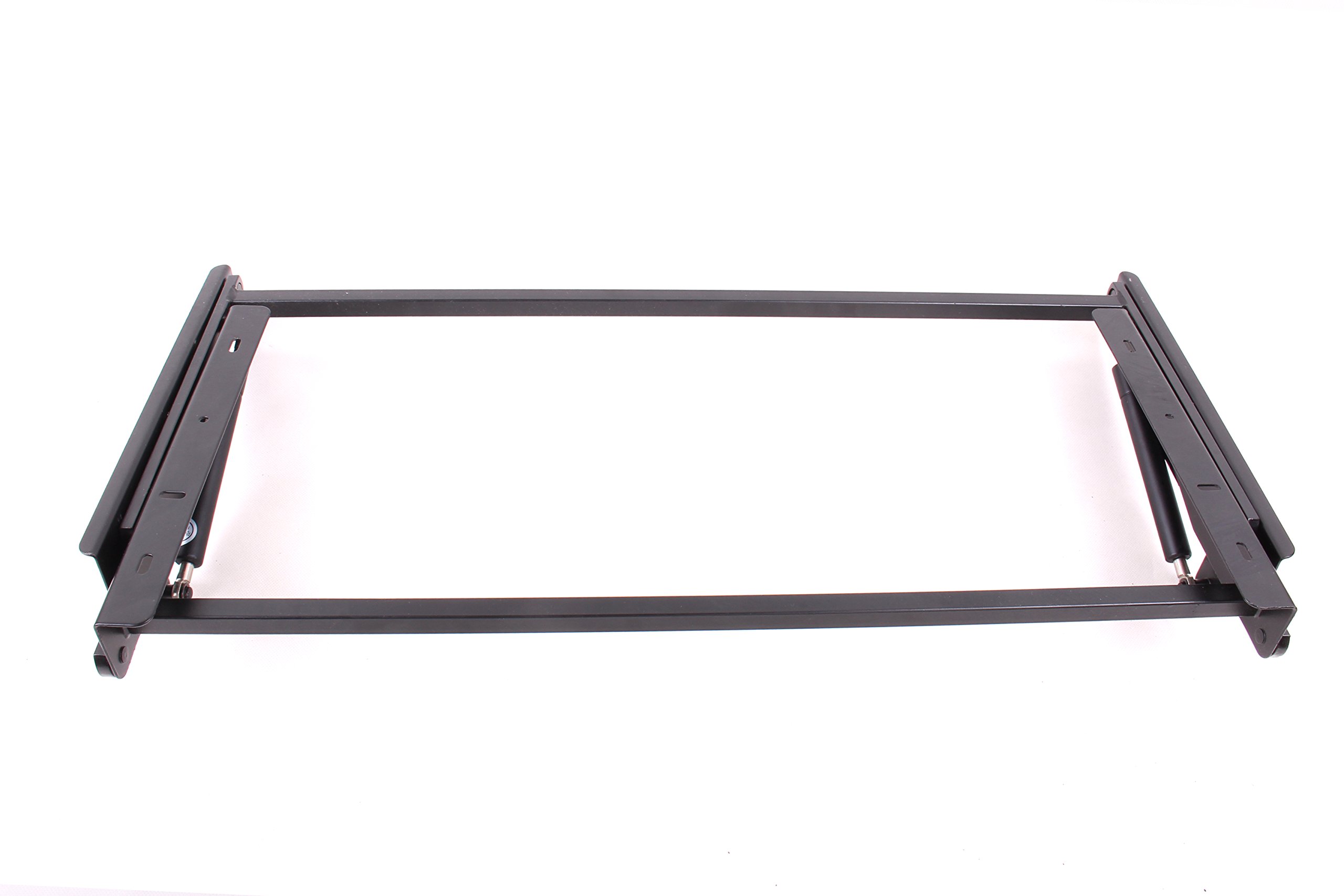

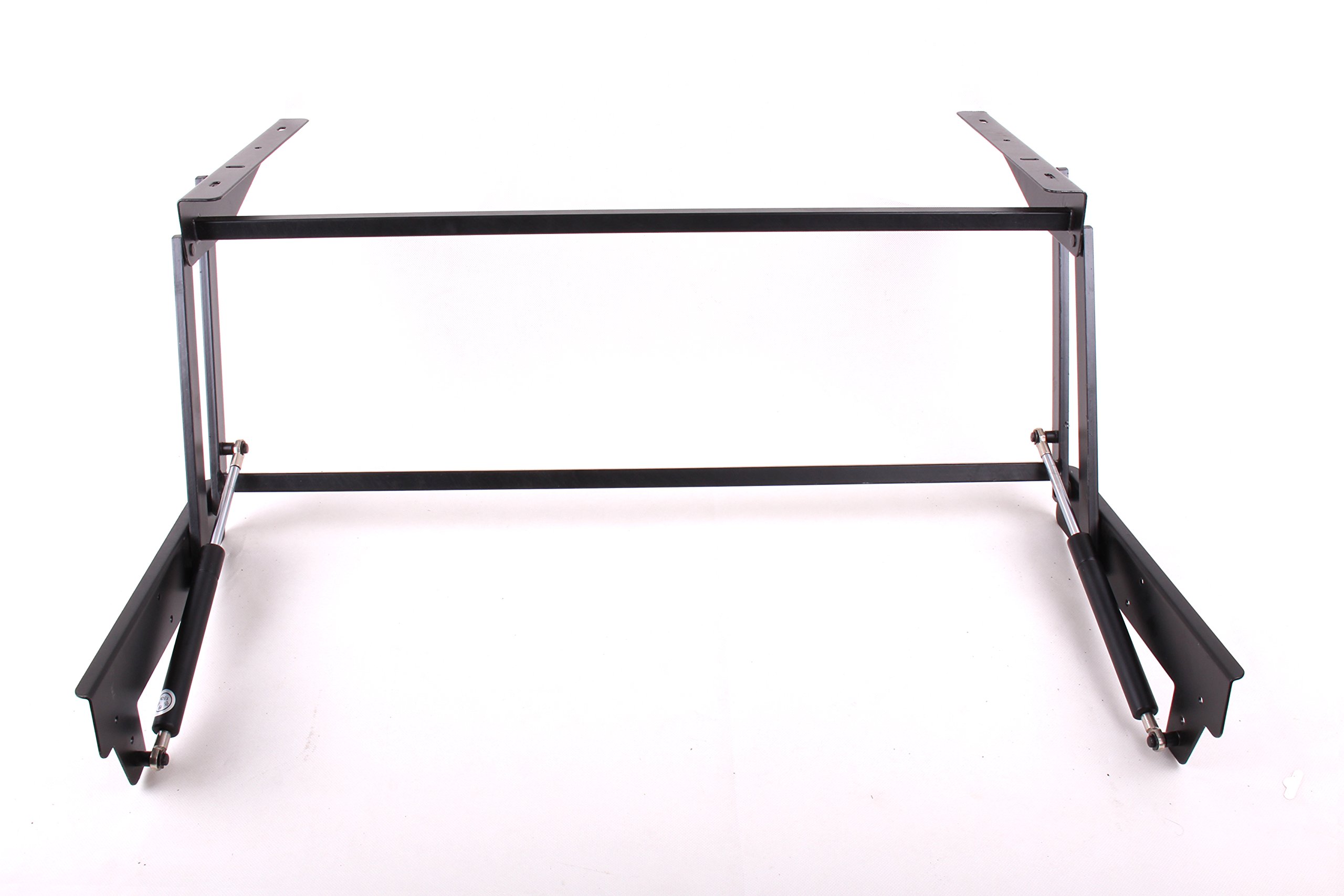

Overall length and Width and height when in folded position 27 3/8 inch ( L) x 13 1/2 inch (W） x 3 7/8 inch (H). The top raises up 9 inch and forward 8 1/4 inch.

Screws are not included (you may use bolts, machine screws, wood screws or whatever you feel necessary for your particular project).No instruction is included.

Package includes 2 hinges and 2 buit-in Gas Hydraulic - enough to do one coffee table (or whatever you want to use it for).No instruction included.

The specs say it will hold between 100 and 200 lbs when opening.Note Each Gas Hydraulic Lift has 6KG of force.
